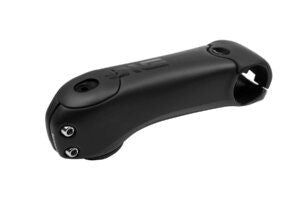

ENVE Stem integrated Aero OEM Road 7 deg
An aerodynamically honed stem with adjustable length and angle to optimize your position. Linking handlebar to fork, the stem was developed with Team Dimension Data for the refined ride response and control needed in a critical area of the bike. This stem is intended for negative drop only and cannot be flipped or reversed in a positive rise. The rider makes up 80-90% of total aero drag, so refining your position can produce some of the biggest gains of all. Further, the shape of the stem, plus the ability to eliminate headset spacers, allows for cleaner airflow at the front of the bike, producing valuable drag savings. Created in conjunction with Team Dimension Data, the stem delivers the confident and responsive ride feel desired by the best riders in the world.
PRODUCT SPECS
|
Material |
Carbon |
|
Length |
90, 100, 110, 120, 130, 140mm (+/-2.5mm with -12° shim) |
|
Weight |
165, 170, 175, 180, 185, 190 grams |
|
Rise |
-12° fixed, -17°/-7° with angle shim |
|
Clamp Diameter |
31.8 mm |
|
Steer Tube Clamp Diameter |
1 1/8″ |
|
Faceplate Material |
Aluminum |
|
Hardware Material |
Titanium |
|
Stack Height |
42.5mm with length shim / 45.5mm with angle shim |
|
Torque Spec: Face Plate |
Upper Bolt: 10Nm, Lower Bolt: 6Nm |
|
Torque Spec: Steer Tube |
5.5Nm |
|
Product SKU |
90mm: 300-1020-006 100mm: 300-1020-001 110mm: 300-1020-002 120mm: 300-1020-003 130mm: 300-1020-004 140mm: 300-1020-005 |
